Top Entry Ball Valve – Design and Industrial Applications
Top-entry ball valves are preferred where uptime is crucial, space is tight, and maintenance windows are brief. Their one-piece body and top-access design allow operators to remove the core, change seats, and return to service without having to cut the valve from the line.
Our Top Entry Ball Valve Categories
Cryogenic Top Entry Ball Valve
Engineered for extreme low-temperature applications in LNG, liquid nitrogen, and cryogenic storage systems. Features extended bonnets and specialized sealing materials.
Floating Top Ball Valve
Ideal for lower pressure applications with simplified design. The ball floats between two seat rings, providing reliable sealing with minimal maintenance requirements.

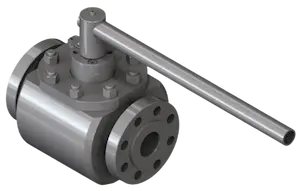

Trunnion Top Ball Valve
Designed for high-pressure and large-diameter applications. Features mechanical anchoring at top and bottom, ensuring stable torque and extended service life.
Introduction
This feature significantly impacts project economics on pipelines, refineries, LNG trains, offshore modules, and facilities utilizing nuclear energy.
The ball valve market features several entry type designs, including:
- Side-entry
- Split-body
- Fully welded
- Top-entry
Top-entry models come into play when the pipe and pipeline must remain undisturbed, when radiographic inspection of the body is required, and when long-term integrity and low emissions are necessary.
Engineers select top-entry valves during front-end design to control lifecycle cost and risk. Fewer body joints lead to reduced leak paths, and a bolted bonnet allows core extraction in place.
This results in quicker turnaround times, lower fugitive emissions, and easier installation processes. Maintenance teams also gain an advantage: accessing a bonnet on a buried main line, changing a seat cartridge, and restoring the valve avoids the need for cranes and minimizes hot-work permits and overall downtime.
What is a Top Entry Ball Valve?
A top-entry ball valve uses a one-piece body with a removable cover on the top. When the valve is isolated and depressurized, a technician can remove the bonnet and access the ball, stem, and seat assemblies without disturbing the pipeline.
Most industrial top-entry ball valves are trunnion mounted, meaning the ball is supported at both the top and bottom, while spring-loaded seats seal the ball as line pressure energizes them.
The stem connects through the bonnet with blowout-proof features and an ISO mounting pad for actuators.
The body can be forged or cast. Forged bodies suit high-pressure or sour service, while cast bodies work well in moderate conditions.
End connections include flanged raised-face, ring-type joint, and butt-weld. Many pipeline valves are fully welded with a bolted top cover that provides internal access.
Technical Structure & Design
Cross-sectional view showing internal components
Key Components:
One-piece body: Eliminates body joint leakage paths
Top-entry bonnet: Allows inline maintenance without line removal
Trunnion support: Stable torque under all pressure conditions
Spring-loaded seats: Self-adjusting for optimal sealing
Blowout-proof stem: Safety design prevents stem ejection
Fire-safe construction: Graphite secondary sealing system
Design Features and Specifications
Top-entry valves integrate the pressure boundary into a single body cavity. With fewer body joints, there is less need for perimeter bolting and large gaskets.
The main static seal is between the bonnet gasket and the body-to-bonnet interface, often supported by a secondary metal-to-metal fire-safe seal.
Specification Highlights
- Sizes: NPS 2 to NPS 48 and larger
- Pressure classes: ASME 150 to 2500
- End connections: RF, RTJ, BW, and sometimes hub connections
- Body materials: A105 and LF2 carbon steel, F51 duplex, and CF8M stainless steel among others
- Seats: Made from PTFE blends, PEEK, Devlon, Nylon; metal seats with HVOF coatings for solids or high temperatures
Fire-safe construction complies with API 607 or API 6FA using a graphite secondary seal. An antistatic device and blowout-proof stem design are included with emergency sealant injection capabilities and cavity pressure relief features.
Trunnion-Mounted Mechanism
Trunnion-mounted valves support the ball with upper and lower trunnions that transfer loads into the body instead of the stem. This mechanism maintains stable operating torque under pressure, reduces stem loads, and supports larger valve diameters.
The seats, spring-loaded towards the ball, provide reliable sealing with minimal pressure. Some smaller top-entry valves use floating balls for simplicity, but even those designs benefit from top bonnet access.
Technical Parameters Overview
| Parameter | Specification | Standard |
|---|---|---|
| Size Range | NPS 2″ – 48″ | ASME B16.34 |
| Pressure Class | 150 – 2500 LB | ASME B16.34 |
| Design Standard | API 6D, ISO 17292 | API/ISO |
| Body Material | A105, LF2, F51, CF8M, WCB | ASTM A105/A350 |
| Temperature Range | -196°C to +538°C | API 6D |
| Seat Material | PTFE, PEEK, Devlon, Metal | – |
| Fire Safe | Graphite Secondary Seal | API 607/6FA |
| Fugitive Emissions | Class A, B, C | ISO 15848/API 641 |
| End Connection | RF, RTJ, BW, Hub | ASME B16.5/B16.25 |
| Operation | Manual, Electric, Pneumatic, Hydraulic | ISO 5211 |
Benefits of Top Entry Design
The one-piece body of a top-entry valve offers strong mechanical integrity with fewer leak points. A bolted cover provides access to the internals without disturbing the pipe or pipeline.
This design shifts maintenance from heavy lifting to controlled tasks performed at the pipeline centerline.
Ease of Maintenance and Inline Repairs
Tasks that require removing a side-entry valve can be done at the top cover in top-entry designs. Regular maintenance tasks such as seat wear, stem packing replacement, and debris cleaning are performed more quickly.
Maintenance Process:
Isolate the valve, depressurize both sides, and secure the actuator.
Open the body drain and vent lines to release the cavity pressure.
Detach the actuator if needed, then remove the bonnet fasteners in a star pattern.
Lift the bonnet with the stem attached, taking care to support the ball.
Remove the seat cartridges, check the ball surface for wear.
Reassemble the bonnet with new gaskets, align the stem key with the ball slot.
Conduct an inline hydrotest of the seats before returning the valve to service.
Applications Across Industries
Oil & Gas Pipelines
Critical isolation and control in transmission pipelines, compressor stations, and storage facilities.
Refineries & Petrochemicals
Process isolation in crude units, FCC, hydroprocessing, nuclear energy, and chemical production units.
LNG & Cryogenic Service
Specialized valves for liquefaction trains, LNG terminals, and cryogenic storage systems.
Pipeline block valves often use top-entry designs because the line remains intact during installation and maintenance, which is a distinct advantage over other entry types. Electric or gas-over-oil actuators attach directly to the ISO pad, and the one-piece body supports piggable bores with minimal pressure loss.
In refineries and petrochemical plants, top-entry valves are used near critical units. Applications in sour service and high-pressure hydrogen favor forged bodies. The ability to change seats without disconnecting piping simplifies planning during scheduled turnarounds.
Case Study
A 24-inch Class 600 pipeline station uses a top-entry trunnion ball valve with DPE seats. During a scheduled outage, the maintenance team replaced seat cartridges and stem packing in hours rather than days.
Result: 75% reduction in maintenance time, zero unplanned shutdowns over 5 years.
Standards and Certifications
Specifications set performance, testing, and documentation requirements. For pipeline valves, API 6D defines body and seat pressure testing and other performance criteria.
Standards Include:
API 6D:
Pipeline valve design and inspection
ISO 17292:
Metal ball valves in industrial applications
ASME B16.34:
Materials and pressure-temperature ratings
ISO 5211:
Actuator mounting interfaces
ISO 15848/API 641:
Fugitive emissions levels
Additional requirements may involve PED conformity, ATEX for explosive atmospheres, and NORSOK M-501 for offshore coatings. Documentation includes MTRs, NDE records, hydrotest charts, and quality plans.
Technical Documentation
Frequently Asked Questions
Q: What distinguishes a top-entry ball valve from a side-entry valve?
A: The one-piece body with a removable top cover allows access to internals without disconnecting the valve from the pipeline or pipe.
Q: Is trunnion mounting used in all cases?
A: Most top-entry valves above NPS 6 use trunnion mounting to stabilize torque and reduce stem loading. Smaller sizes may use floating balls.
Q: What does double block and bleed mean here?
A: It means the valve can isolate pressure on both sides and allow the cavity to be bled or monitored.
Q: How does one perform inline maintenance safely?
A: The process starts with isolating and depressurizing the valve, followed by careful disassembly and reassembly, concluding with a seat pressure test.
Conclusion
Checklist for specifiers and project teams:
Service data: Medium, temperature profile, pressure, solids in the flow.
Size and pressure class: NPS and ASME class with the appropriate end connection type.
Seat design: Single or double piston effect, double block and bleed.
Materials: Ensure proper body and trim metallurgy, including NACE compliance.
Seats and seals: Selection of PTFE, PEEK, Nylon, or metal seats.
Emissions: Target ISO 15848 or API 641 leakage classes.
Actuation: Select the right actuator torque and safety factor.
Testing and documentation: Confirm API 6D compliance and secure necessary certifications.
Maintenance features: Plan for emergency sealant injection and ensure proper access.
This checklist helps maintain lower downtime, consistent emissions performance, and a straightforward maintenance plan throughout the asset’s lifecycle.
